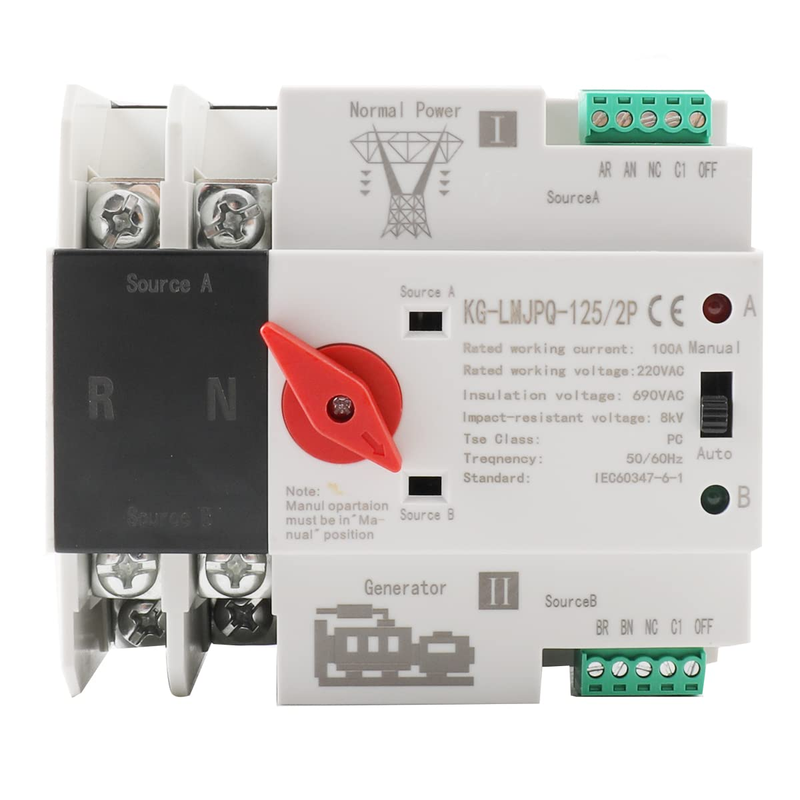

2p 100a Dual Power Automatic Transfer Switch 220v Generator

Auto mode: Common power supply must be City Grid Power. Backup power must be AC genarator. When there is only one power supply is working, the product will automatically switch to that power supply. When the common power supply and the backup power supply are supplied at the same time, the common power supply is used Preferentially.

Attention: in automatic mode, forcibly rotating the power switch handle will cause damage to the transfer switch

Manual mode: Power supply should be transfered manually by rotating the handle.

Specification: Rated frequency: 50Hz/60Hz Insulation voltage: 690V, 50Hz Electrical level: PC level Number of poles: 2P Rated operating current: 100A Rated operating voltage: 220V

Easy installation: Reasonable structure, small size,convenient in instabllation and maintenance,power supply is easy to install and reliable.

Product Description
General:
Series dual power automatic transfer switches are newly developed muniature househould power transfer switches.This switch is mainly used to test whether the normal or standby power supply is normal.When the narmal power supply is abnormal,the backup power supply will work immediately to ensure the continuity,reliability and safety of the power supply.This product is specially designed for home track TV installation and is specially used for Pz 30 distribution box.
Application:
Residence,and in various occasions where continuous power failure is not allowed.
Specification Number of poles: 2P Signal terminal rated voltage: AC220V Rated current: 100A Rated control voltage: AC220V (-15%~+10%); 50~60Hz Rated insulation voltage: AC690V Use category: AC-33iB Rated impulse withstand voltag 8KV Life Electrical:2000times; Mechanical: 5000times 50KA Rated limited short-circuit current Iq: Contact transfer time: <50ms Operating transfer time: <50ms Return transfer time: <50ms Off-time: <50ms Grade: PC Level: able to male and withstand, not to break short-circuit current Number of poles 2P 2P 3P Voltage 110V 220V 110V
